What is the MicroCab 1500?

The MicroCab 1500 is a rugged, modular outdoor DC power system designed to provide battery-backed DC power for critical loads. It supports 12V, 24V, or 48V DC systems and is built for outdoor environments where reliable backup power is required.

What applications are the MicroCab 1500 designed for?

The MicroCab 1500 is designed for critical DC power applications that need dependable outdoor backup power. Its weatherproof enclosure, expandable battery capacity, and modular rectifier design make it suitable for infrastructure, telecom, utility, industrial, and other high-reliability environments.

Is the MicroCab 1500 suitable for outdoor environments?

Yes. The MicroCab 1500 uses a compact, corrosion-resistant, weatherproof NEMA 3RX enclosure. It also includes sealed electronics and conduction cooling to help protect components in hot, wet, and demanding outdoor conditions.

What battery options are available for the MicroCab 1500?

Users can select from a variety of VRLA batteries, including high-temperature-rated batteries. Optional battery insulation and heaters are also available to support performance and battery life in extreme climates.

Can the MicroCab 1500 be mounted?

The MicroCab 1500 can be installed using floor, wall, or pole mounting options, giving system designers flexibility for outdoor site requirements.

What certifications does the MicroCab 1500 have?

The MicroCab 1500 is C-UL listed, IBC seismic certified, and California Energy Commission battery charger certified.

microcab  microcab 1500 MC124302H15331114131S MC124302S103000100100 MC124302S153000000100 MC224151H302222140410 MC124302S153220141410 MC224302H303311141310 MC124151S102211001400 MC124151H071000141210 MC224302S202222110110 MC124302H152211020210 MC248252H073000040310 MC124453H072233170100 MC224453H302222041300 MC224453H302222000100 MC248252S103000000310 MC124302H153300040310 MC124151H151100010300 MC124302S151120040310 MC124302H153311141310 MC224302F002000140101 MC124151S152220040100 MC124302S101110140200 MC124302S153000030100 MC224453H302211100210 MC124302S102222110110 MC124302S153222000200 MC224152H302000160400 MC224453H302222011300 MC124453H072222011300 MC224453H302222160200 MC124302H072200040100 MC224303S302200150100 MC224302S303322000210 MC124152H154400040310 MC224453H302222121400 MC224152H302000160110 MC124453S104222050100 MC124151S072211001100 MC248121H073000040300 MC124302S103300100100 MC124151S071100100100 MC124302S102200000300 MC224453S204422050100 MC124302S153000000400 MC124302S104211160110 MC124453S152220000100 MC124302S152222151100 MC124302S152211001400 MC124302S102211000100 MC224302H302000141310 MC124151S151100020100 MC124151H153000100100 MC124302H152211161400 MC124302S102200000100 MC224152H302222160200 MC124151H153000060110 MC224302S304211011300 MC224453S302222010410 MC124151S042000041200 MC112151H151111040410 MC248252H153000040410 MC124151S041100000100 MC224453H303000040100 MC224453H304110040100 MC124302S103210100100 MC224453H301122040310 MC248121S042222000100 MC124151S041110000100 MC124151H071100141210 MC224453S303322000210 MC124302S153111000100 MC124453S154400000100 MC124453S152220000300 MC124302H072220040100 MC248121S041144040100 MC124302H152222040100 MC124151S103000100100 MC124302S101100140200 MC124152H073000050100 MC224302S304211001300 MC124303H152200160110 MC124302S154200100300 MC124453S102244050100 MC124152H071110100100 MC124151S072222100300 MC124152H072222040200 MC124453S044220000110 MC124302S153000100410 MC124302S102200150100 MC124151S071000100100 MC124152H071111141410 MC112151S044100031300 MC124152S072222000410 MC124151S103000100110 MC224302F004000050101 MC224453S203000000100 MC124453S102244100200 MC124151S072220000100 MC224453S203333050310 MC124453S103222160200 MC124152H071110100110 MC124302S151111050300 MC124302H153111000100 MC124151S102222141410 MC124151H072200040100 MC224302H302222150300 MC124302S152222100100 MC124453S102222100200 MC224453H302222141210 MC124151H071111000100 MC224302S303333100410 MC224453H302222041210 MC124302S071111100110 MC224302S203000000300 MC124453T003300030401 MC124453S042200000100 MC124302S153330100300 MC124302S104211160100 MC124453S074112010110 MC224302S302222151100 MC124151H071000000100 MC124151S043000000100 MC124453S102200130200 MC124151S072211001400 MC224302S303221110110 MC224453H302222150300 MC124151S103000000100 MC124302S101110050200 MC224302S202222051100 MC124302T001000000100 MC124151S072211000400 MC124453S104000130200 MC224303S302200150300 MC124151S071111010400 MC124151S071111050100 MC212453S604422100400 MC224453S204220100300 MC224302H142211020210 MC224302H302211161400 MC124302S103000130200 MC224302S201111110110 MC124302H153000100100 MC124302S102222100100 MC224302S202222100100 MC124152S071110100110 MC124151S102000100100 MC124453H152220000100 MC124151S043300140200 MC124302H153000000100 MC124453S104440170200 MC224303S304221101210 MC124302S153000100300 MC124453H154211100200 MC224303S303200150100 MC124151T002200000210 MC124302S104440170200 MC124302H153000120200 MC224302F002222150301 MC124302H153000140310 MC124303S103300150200 MC124302F003222100301 MC224302S102222110111 MC224453S302222030410 MC124303S104000100100 MC224453H302222141410 MC224302S201222100300 MC224302H303000101100 MC124302S152200130100 MC224453H301122041210 MC124302S072211101100 MC124302S152200100100 MC124151H152000020100 MC124151S153000040210 MC224302S103221110101 MC124151S102100000100 MC224453S302222100300 MC224453S304433001310 MC124302S101230000400 MC124302S103000141110 MC124302H153000100200 MC224453S304322000400 MC224453S301122030410 MC224302S202000130300 MC224302S304322141410 MC224453S302222141410 MC124302S153000100100 MC124303S153000150200 MC224302S303322000100 MC124302S072222101100 MC124453S104000170200 MC224453H304322141410 MC224453S304222001310 MC124302S103000140100 MC124302S072211100100 MC224152S301110100300 MC124302H151122171200 MC124302S153000000110 MC224453S302223100410 MC224302S202222000100 MC224302H304322141410 MC124151H153000060100 MC124302S152110000200 MC124302S152222010410 MC224453F002222010411 MC224302F002222010411 MC124151S071122100200 MC124453S104400170200 MC124302S151122010410 MC124151S041000000100 MC124151S103000100300 MC124302S103000110300 MC124151S151122100100 MC224302S303000100300

MicroCab® 1500

Modular Outdoor DC Power System

Power conversion, batteries, controls, distribution, and communications in one complete system. Ideal for pipeline, pump stations, compression stations, and onshore drilling rigs.

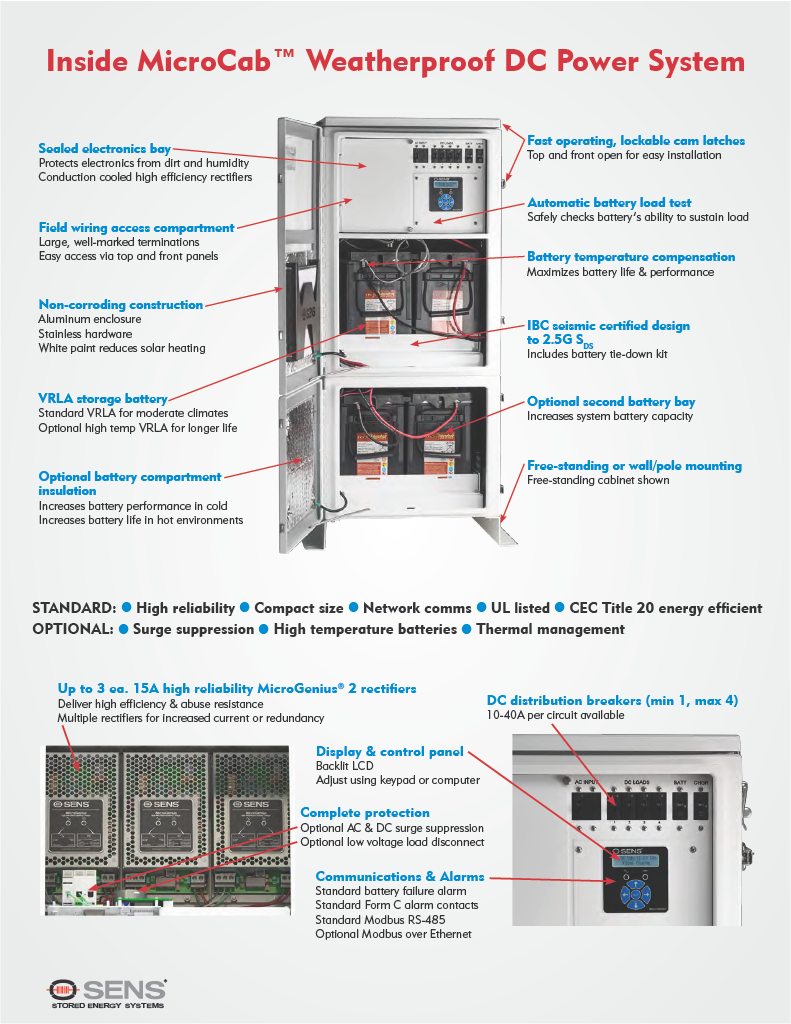

View Datasheet

Overview

High Reliability Non-Stop DC Power System

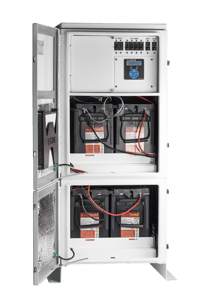

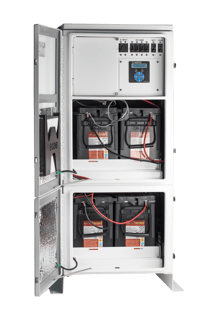

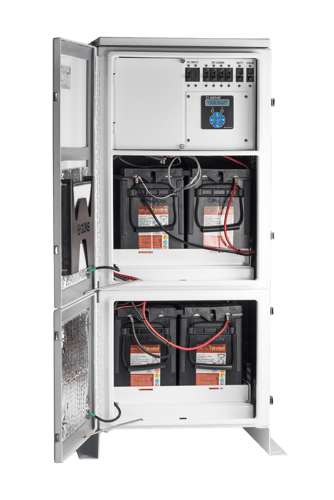

MicroCab 1500 is a rugged, modular outdoor DC power system / DC UPS. The system features both expandable charging and battery capacity.

MicroGenius® 2 high efficiency switchmode rectifier/chargers deliver up to 45A at either 12, 24 or 48 volts. Up to three rectifiers operate in parallel, providing seamless power expansion or redundancy to meet high availability requirements. Battery capacity is expanded by the use of an expansion bay integrated below the base unit. Users may select from a variety of VRLA batteries, including special high temperature rated batteries.

All systems include Modbus over RS-485, with optional TCP/IP support. Standard Form C contacts annunciate summary, major, and minor alarms.

Applications & Industries

Specifications

Voltage	12/24/48VDC
Ingress protection	Weatherproof NEMA 3RX enclosure
Distribution Breakers	1-4 breakers, 10-40A each
Battery Type	VRLA, standard or high temperature
Mount	Optional floor mount or wall / pole mount
Communications & Alarms	Modbus over RS-485 with 3 form-c alarm relays, optional Modbus TCP/IP support
Certifications	C-UL Listed (US & Canada), IBC seismic certified
Assembly	Factory-built in ISO 9001-2015 facility

Why Microcab

Weatherproof. Compact. Rugged.

Reliable outdoor backup power

Delivers battery-backed 12V, 24V, or 48V DC power in a rugged NEMA 3RX enclosure built for hot, wet, and demanding outdoor environments.

Scales with site requirements

Modular rectifier/chargers and expandable battery capacity make it easy to add power, increase runtime, or configure N+1 redundancy.

Reduce installation complexity

Specify and order your DC system with a single part number. Our all-in-one MicroCab system arrives as a UL listed and seismic certified, ready for drop-in installation.

Get in touch with an expert

Our engineers are ready to help you find the right configuration for your application.
